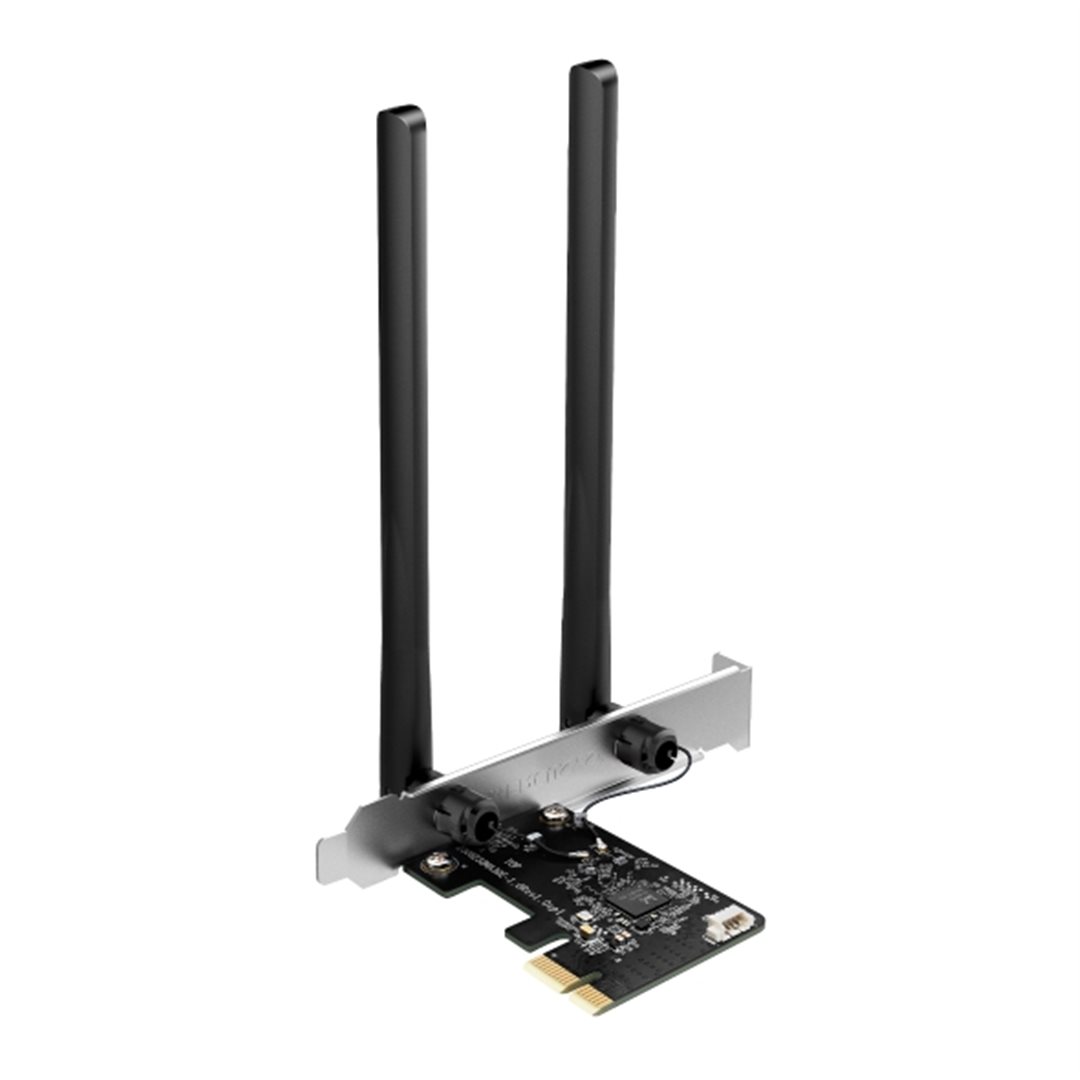

Mercusys MA30E AC1200 Dual-Band WiFi BT PCIe

Mercusys MA30E
AC1200 Wi-Fi Bluetooth PCIe Adapter

Functions
Strong Dual Band Wi-Fi Speed

• Speeds up to 867 Mbps (5 GHz) + 300 Mbps (2.4 GHz)1

Wider Signal Coverage

• Two high-performance antennas

Bluetooth 5.0

• The Bluetooth 5.0 technology achieves faster speeds and broader coverage2

MU-MIMO

• Simultaneously serve several devices with no more latency or bandwidth congestion3

Improved Security

• The latest security enhancement, WPA3, provides enhanced protection in personal password safety4

Backward Compatibility

• Full support for 802.11ac/a/b/g/n standards

Windows Compatible

• Supported operating system: Windows 10, 11 (64 bit)

Specifications

• IEEE 802.11 a/n/ac 5 GHz
• IEEE 802.11 b/g/n 2.4 GHz

WiFi Speeds

• 867 Mbps on 5 GHz
• 300 Mbps on 2.4 GHz

Reception Sensitivity
5 GHz:

• 11a 54Mbps: -77 dBm
• 11ac VHT80 MCS0: -92dBm
• 11ac VHT80 MCS9: -64dBm

2.4 GHz:

• 11g 54Mbps: -76 dBm
• 11n HT40 MCS7: -72dBm

Wireless Security

• WPA-PSK/WPA2-PSK/WPA3-SAE

Hardware
Dimensions

• 8.9 × 4.8 × 0.85 in (226.3 × 120.8× 21.5 mm

Antenna Type

• 2× Fixed High-Performance Omni-Directional Antennas
